A 200 Mhz System Bus Processor Is Installed

The System x3650 M4 server provides outstanding performance for your mission-critical applications. Its energy-efficient design supports more cores, memory, and data capacity in a scalable 2U package that is easy to service and manage. With more computing power per watt and the latest Intel Xeon processors, you can reduce costs while maintaining speed and availability. This product guide provides essential pre-sales information to understand the structure of the x3650 M4 (E5-2600) offering, its key features and specifications, components and options, and configuration guidelines.

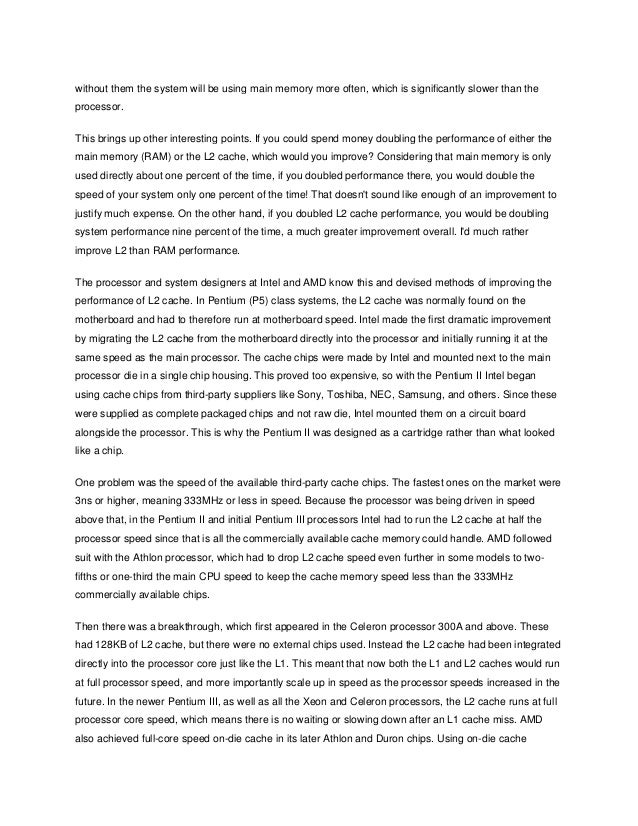

CPU parameters. CPU and memroy timing. BIOS Firmware. This motherboard uses AMI BIOS that enables users to configure many system features including the. Install any remaining DIMM modules. DDR2 SDRAM memory module table. Memory module. Installing a 550 MHz Slot 1 Pentium III may damage the processor or motherboard because the faster processor draws more current than the VRM (Voltage. But PCI devices are unreliable much above 33 MHz, and overclocking the system by using a 75, 83, or 95 MHz FSB would cause the PCI bus to run at 37.5 MHz.

This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the x3650 M4 (E5-2600) and consider its use in IT solutions. Note: This Product Guide describes withdrawn models of the x3650 M4 with the Intel Xeon processor E5-2600 product family.

For currently available x3650 M4 models with the Intel Xeon processor E5-2600 v2 product family, see the Product Guide. Change History. Introduction The System x3650 M4 server provides outstanding performance for your business-critical applications. Its energy-efficient design supports more cores, memory, and data capacity in a scalable 2U package that is easy to service and manage. With more computing power per watt and the latest Intel Xeon processors, you can reduce costs while maintaining speed and availability.

Suggested use: database, virtualization, enterprise applications, collaboration/email, streaming media, web, HPC, Microsoft RemoteFX, and cloud applications. Figure 1 shows the System x3650 M4. The System x3650 M4. Did you know? The x3650 M4 offers a flexible, scalable design and simple upgrade path to 16 hard-disk drives (HDDs) or solid-state drives (SSDs) plus optical and tape drives at the same time, with up to six PCIe Gen 3 slots and up to 768 GB of memory.

This flexible onboard Ethernet solution provides four standard embedded Gigabit Ethernet ports and two optional embedded 10 Gb Ethernet ports without occupying PCIe slots. Comprehensive systems management tools with the next-generation Integrated Management Module II (IMM2) make it easy to deploy, integrate, service, and manage. Key features The x3650 M4 is an outstanding 2U two-socket business-critical server, offering improved performance and pay-as-you grow flexibility along with new features that improve server management capability. This powerful system is designed for your most important business applications and cloud deployments. Combining balanced performance and flexibility, the x3650 M4 is a great choice for small and medium businesses up to the large enterprise. It can provide outstanding uptime to keep business-critical applications and cloud deployments running safely.

Ease of use and comprehensive systems management tools make it easy to deploy. Outstanding RAS and high-efficiency design improve your business environment and help save operational costs. Scalability and performance The x3650 M4 offers numerous features to boost performance, improve scalability, and reduce costs: • Intel Xeon processor E5-2600 product family • Improves productivity by offering superior system performance with up to 8-core processors, up to 20 MB of L3 cache, and up to two 8 GT/s QPI interconnect links.

• Supports up to two processors, 16 cores, and 32 threads maximize the concurrent execution of multi-threaded applications. • Supports up to 1600 MHz memory speeds. • Supports up to 768 GB memory with 32 GB LRDIMMs or HCDIMMs. • Intelligent and adaptive system performance with Intel Turbo Boost Technology 2.0 allows CPU cores to run at maximum speeds during peak workloads by temporarily going beyond processor TDP.

• Intel Hyper-Threading Technology boosts performance for multi-threaded applications by enabling simultaneous multi-threading within each processor core, up to two threads per core. • Intel Virtualization Technology integrates hardware-level virtualization hooks that allow operating system vendors to better utilize the hardware for virtualization workloads. • Intel Advanced Vector Extensions (AVX) significantly improve floating-point performance for compute-intensive technical and scientific applications. • 12 Gbps SAS internal storage connectivity doubles the data transfer rate compared to 6 Gb SAS solutions to maximize performance of storage I/O-intensive applications.

• The use of solid-state drives (SSDs) instead of, or along with, traditional spinning drives (HDDs) can significantly improve I/O performance. An SSD can support up to 100 times more I/O operations per second (IOPS) than a typical HDD.

• Up to 32 1.8-inch SSD bays, or up to 16 2.5-inch bays, or up to 6 3.5-inch bays, together with internal backup and an optical drive at the same time, provide a flexible and scalable all-in-one platform to meet your increasing demands. • The server has four integrated Gigabit Ethernet ports and two optional 10 Gb Ethernet ports with mezzanine cards that do not consume PICe slots. • The server offers PCI Express 3.0 I/O expansion capabilities that improve the theoretical maximum bandwidth by almost 100% (8 GTps per link using 128b/130b encoding) compared to the previous generation of PCI Express 2.0 (5 GTps per link using 8b/10b encoding). • With Intel Integrated I/O Technology, the PCI Express 3.0 controller is integrated into the Intel Xeon processor E5 family. This integration helps to dramatically reduce I/O latency and increase overall system performance.

• Support for NVIDIA Quadro graphics processing units (GPUs) to maximize computing power. Availability and serviceability The x3650 M4 provides many features to simplify serviceability and increase system uptime: • The server offers memory mirroring and memory rank sparing for redundancy in the event of a non-correctable memory failure. • Tool-less cover removal provides easy access to upgrades and serviceable parts, such as CPU, memory, and adapter cards.

• The server offers hot-swap drives, supporting RAID redundancy for data protection and greater system uptime. • The server has up to two redundant hot-swap power supplies and four hot-swap dual-motor redundant fans (two fan zones with an N+1 fan design) to provide availability for business-critical applications. • The light path diagnostics panel and individual light path LEDs quickly lead the technician to failed (or failing) components, which simplifies servicing, speeds up problem resolution, and helps improve system availability.

• Predictive Failure Analysis (PFA) detects when system components (processors, VRMs, memory, HDDs, fans, and power supplies) operate outside of standard thresholds and generates proactive alerts in advance of a possible failure, therefore increasing uptime. • Solid-state drives (SSDs) offer significantly better reliability than traditional mechanical HDDs for greater uptime. • Built-in Integrated Management Module Version II (IMM2) continuously monitors system parameters, triggers alerts, and performs recovering actions in case of failures to minimize downtime.

• Built-in diagnostics, using Dynamic Systems Analysis (DSA) Preboot, speed up troubleshooting tasks to reduce service time. • Three-year customer-replaceable unit and on-site limited warranty, 9x5 next business day. Optional service upgrades are available. Manageability and security Powerful systems management features simplify local and remote management of the x3650 M4: • The server includes an Integrated Management Module II (IMM2) to monitor server availability and perform remote management. • Integrated industry-standard Unified Extensible Firmware Interface (UEFI) enables improved setup, configuration, and updates, and simplifies error handling.

• Integrated Trusted Platform Module (TPM) 1.2 support enables advanced cryptographic functionality, such as digital signatures and remote attestation. • Industry-standard Advanced Encryption Standard (AES) NI support for faster, stronger encryption. • IBM Systems Director offers comprehensive systems management tools that help to increase uptime, reduce costs, and improve productivity through advanced server management capabilities. • Intel Execute Disable Bit functionality can help prevent certain classes of malicious buffer overflow attacks when combined with a supported operating system.

• Intel Trusted Execution Technology provides enhanced security through hardware-based resistance to malicious software attacks, allowing an application to run in its own isolated space, protected from all other software running on a system. Energy efficiency The x3650 M4 offers the following energy-efficiency features to save energy, reduce operational costs, increase energy availability, and contribute to the green environment: • Energy-efficient planar components help lower operational costs. • The x3650 M4 is Energy Star 2.0 compliant. Energy Star is the trusted, US government-backed symbol for energy efficiency, with the goal of helping customers save money and protect the environment through energy efficient products and practices. • Highly efficient 550 W, 750 W, and 900 W AC power supplies with 80 PLUS Platinum certification. Available 750W DC power option.

• Intel Xeon processor E5-2600 product family offers significantly better performance over the previous generation while fitting into the same thermal design power (TDP) limits. • Intel Intelligent Power Capability powers individual processor elements on and off as needed, to reduce power draw. • Low-voltage Intel Xeon processors draw less energy to satisfy the demands of power and thermally constrained data centers and telecommunication environments. • Low-voltage 1.35 V DDR3 memory RDIMMs consume up to 19% less energy compared to 1.5 V DDR3 RDIMMs.

• Solid state drives (SSDs) consume as much as 80% less power than traditional spinning 2.5-inch HDDs. • The server uses hexagonal ventilation holes, which is a part of Calibrated Vectored Cooling technology.

Hexagonal holes can be grouped more densely than round holes, providing more efficient airflow through the system. • IBM Systems Director Active Energy Manager™ provides advanced data center power notification and management to help achieve lower heat output and reduced cooling needs. Standard specifications Components Specification Form factor 2U Rack-mount. Processor Up to two Intel Xeon processor E5-2600 product family CPUs with eight cores (up to 2.9 GHz) or six cores (up to 2.9 GHz) or four cores (up to 3.3 GHz). Two QPI links up to 8.0 GT/s each. Up to 1600 MHz memory speed. Up to 20 MB L3 cache.

Chipset Intel C602J. Memory Up to 24 DIMM sockets (12 DIMMs per processor). RDIMMs, UDIMMs, HyperCloud DIMMs, and LRDIMMs (Load Reduced DIMMs) are supported, but memory types cannot be intermixed. Memory speed up to 1600 MHz. Memory maximums • With RDIMMs: Up to 384 GB with 24x 16 GB RDIMMs and two processors • With UDIMMs: Up to 64 GB with 16x 4 GB UDIMMs and two processors • With HyperCloud DIMMs: Up to 768 GB with 24x 32 GB DIMMs and two processors • With LRDIMMs: Up to 768 GB with 24x 32 GB LRDIMMs and two processors Memory protection ECC, Chipkill, memory mirroring, and memory rank sparing.

Disk drive bays Up to 32 1. Vray Plugin For 3ds Max 2012 32 Bit Free Download. 8' SSD bays, or 16 2.5' hot-swap SAS/SATA bays, or up to six 3.5' hot-swap SAS/SATA bays, or up to eight 2.5' Simple Swap SATA bays, or up to six 3.5' Simple Swap SATA bays. Maximum internal storage Up to 28.8 TB with 1.8 TB 2.5' SAS HDDs, up to 16 TB with 1 TB 2.5' NL SAS/SATA HDDs, up to 25.6 TB with 800 GB 1.8' SATA SSDs, up to 25.6 TB with 1.6 TB 2.5' SAS/SATA SSDs, or up to 36 TB with 6 TB 3.5' NL SAS/SATA HDDs.

Intermix of SAS/SATA is supported. RAID support • 6 Gb SAS/SATA: RAID 0, 1, 10 with integrated M5110e or optional M5110; optional upgrades to RAID 5, 50 are available (zero-cache; 512 MB battery-backed cache; 512 MB or 1 GB flash-backed cache). Optional upgrade to RAID 6, 60 is available for M5110e or M5110 with 512 MB or 1 GB cache upgrades. • 12 Gb SAS/SATA: RAID 0, 1, 10 with optional M5210; optional upgrades to RAID 5, 50 are available (zero-cache; 1 GB non-backed cache; 1 GB or 2 GB flash-backed cache). Optional upgrade to RAID 6, 60 is available for M5210 with 1 GB or 2 GB cache upgrades. Optical drive bays One bay for optional DVD-ROM or Multiburner drive.

Tape drive bays Optional Tape Enablement Kit is available to support one DDS5, DDS6, or RDX internal USB tape drive. Network interfaces Four integrated Gigabit Ethernet 1000BASE-T ports (RJ-45); two embedded 10 Gb Ethernet ports (10GBASE-T RJ-45 or 10GBASE-SR SFP+ based) on optional 10 Gb Ethernet mezzanine card (does not consume PCIe slot). PCI Expansion slots Up to six slots depending on the riser cards installed. The slots are as follows: • Slot 1: PCIe 3.0 x8; full-height, full-length • Slot 2: PCIe 3.0 x8; full-height, half-length • Slot 3: PCIe 3.0 x8; full-height, half-length • Slot 4: Optional, requires second processor and second riser card • Slot 5: Optional, requires second processor and second riser card • Slot 6: Optional, requires second processor and second riser card Optional riser cards available with PCIe x8 or PCIe x16 or PCI-X slots.

Ports Two USB 2.0 and one DB-15 video on front. Four USB 2.0, one DB-15 video, one DB-9 serial, one RJ-45 systems management, four RJ-45 GbE network ports, two optional RJ-45 or SFP+ 10 GbE network ports on rear. Two internal USB ports (for embedded hypervisor and internal tape drive). Cooling Calibrated Vectored Cooling with up to four redundant hot swap fans (three standard, additional fan with second processor or with the x3650 M4 Thermal Solution Kit); two fan zones with N+1 fan design; each fan has two motors. Power supply Up to two redundant hot-swap 550 W AC or 750 W AC or 900 W AC power supplies (all 80 PLUS Platinum certification), or -48V 750 W DC power supply options.

Video Matrox G200eR2 with 16 MB memory integrated into the IMM2. Maximum resolution is 1600x1200 at 75 Hz with 16 M colors. Hot-swap parts Hard drives, power supplies, and fans. Systems management UEFI, Integrated Management Module II (IMM2), Predictive Failure Analysis, Light Path Diagnostics, Automatic Server Restart, IBM Systems Director and Active Energy Manager, ServerGuide. Optional Integrated Management Module Advanced Upgrade software feature for remote presence. Security features Power-on password, administrator's password, Trusted Platform Module (TPM).

Operating systems Microsoft Windows Server 2012 R2, 2012, 2008 R2 and 2008; Red Hat Enterprise Linux (RHEL) 5, 6, and 7; SUSE Linux Enterprise Server (SLES) 10, 11, and 12; VMware ESX 4.1 and ESXi 4.1, VMware vSphere (ESXi) 5.0, 5.1, and 5.5. Limited warranty Three-year customer-replaceable unit and on-site limited warranty with 9x5 next business day (NBD). Service and support Optional service upgrades are available through Lenovo Services: Four-hour or two-hour response time, eight-hour fix time, one-year or two-year warranty extension, remote technical support for System x hardware and some third-party applications. Dimensions Height: 86 mm (3.4 in), width: 445 mm (17.5 in), depth: 746 mm (29.4 in) Weight Minimum configuration: 25 kg (55 lb), maximum: 30 kg (65 lb) The x3650 M4 servers are shipped with the following items: • Statement of Limited Warranty • Important Notices • Rack Installation Instructions • Documentation CD that contains the Installation and User's Guide • IBM Systems Director Flyer • System x Gen-III Slides Kit • System x Gen-III Cable Management Arm (CMA) • 2.8 m (9.18 in) C13-C14 power cord (one for models with one power supply, and two for models with two power supplies). Memory options System x DDR3 memory is compatibility tested and tuned for optimal System x performance and throughput.

System x memory specifications are integrated into the light path diagnostics for immediate system performance feedback and optimum system uptime. From a service and support standpoint, System x memory automatically assumes the System x system warranty, and Lenovo provides service and support worldwide. The System x3650 M4 supports DDR3 memory. The server supports up to 12 DIMMs when one processor is installed and up to 24 DIMMs when two processors are installed. Each processor has four memory channels, and there are three DIMMs per channel. The following rules apply when selecting the memory configuration: • Server supports UDIMMs, RDIMMs, HyperCloud DIMMs (also known as HCDIMMs), and LRDIMMs.

• Mixing different types of memory (UDIMMs, RDIMMs, HyperCloud DIMMs, and LRDIMMs) is not supported. • 16 GB HyperCloud DIMMs and 32 GB HyperCloud DIMMs cannot be mixed. • Mixing 1.5 V and 1.35 V DIMMs is supported; in such a case, all DIMMs operate at 1.5 V. • Maximum number of ranks per one channel is eight (with the exception of Load Reduced DIMMs and HyperCloud DIMMs where more than eight ranks are supported, because one quad-rank LRDIMM or HCDIMM provides the reduced electrical load on a memory bus). • The maximum quantity of DIMMs that can be installed in the server depends on the number of CPUs, DIMM type, rank, and operating voltage, as shown in the 'Max.

Qty supported' row in Table 5. • All DIMMs in the server operate at the same speed, which is determined as the lowest value of: • Memory speed that is supported by the specific CPU. • Lowest of maximum operating speeds for selected memory configuration that depends on rated speed, operating voltage, and quantity of DIMMs per channel, as shown under 'Maximum operating speed' section in the table. The following memory protection technologies are supported: • ECC • Chipkill (for x4-based memory DIMMs) • Memory mirroring • Memory rank sparing If memory mirroring is used, DIMMs must be installed in pairs (minimum of one pair per each CPU), and both DIMMs in a pair must be identical in type and size. If memory rank sparing is used, then a minimum of one quad-rank DIMM or two single-rank or dual-rank DIMMs must be installed per populated channel (the DIMMs do not need being identical).

In rank sparing mode, one rank of a DIMM in each populated channel is reserved as spare memory. The size of a rank varies depending on the DIMMs installed. The following table shows the characteristics of the supported DIMMs. Tables cells highlighted with a gray background indicate when the combination of DIMM voltage and the number of DIMMs per channel still allows the DIMMs to operate at a rated speed. RDIMM Rank Single rank Dual rank Quad rank Part numbers 49Y1405 (2GB) 49Y1406 (4GB) 49Y1559 (4GB) 49Y1407 (4GB) 49Y1397 (8GB) 49Y1563 (16GB) 90Y3178 (4GB) 90Y3109 (8GB) 00D4968 (16GB) 49Y1399 (8GB) Rated speed 1333 MHz 1600 MHz 1333 MHz 1600 MHz 1066 MHz Rated voltage 1.35 V 1.5 V 1.35 V 1.5 V 1.35 V Operating voltage 1.35 V 1.5 V 1.5 V 1.35 V 1.5 V 1.5 V 1.35 V 1.5 V Max qty supported* 16 24 24 16 24 24 16 16 Max DIMM capacity 4 GB 4 GB 4 GB 16 GB 16 GB 16 GB 8 GB 8 GB Max memory capacity 64 GB 96 GB 96 GB 256 GB 384 GB 384 GB 128 GB 128 GB Max. Memory at rated speed 64 GB 64 GB 64 GB 256 GB 256 GB 256 GB 128 GB 64 GB Maximum operating speed 1 DIMM per channel 1333 MHz 1333 MHz 1600 MHz 1333 MHz 1333 MHz 1600 MHz 800 MHz 1066 MHz 2 DIMMs per channel 1333 MHz 1333 MHz 1600 MHz 1333 MHz 1333 MHz 1600 MHz 800 MHz 800 MHz 3 DIMMs per channel No support 1066 MHz 1066 MHz No support 1066 MHz 1066 MHz No support No support * Maximum quantity supported is shown for two processors installed.

LRDIMM Rank Dual rank Dual rank Quad rank Part number 49Y1404 (4 GB) 00D5004 (32 GB) 00D4964 (16 GB) 46W0767 (32 GB) 90Y3105 (32 GB) Rated speed 1333 MHz 1066 MHz 1333 MHz 1333 MHz 1333 MHz Rated voltage 1.35 V 1.5 V 1.5 V 1.35 V 1.35 V Operating voltage 1.35 V 1.5 V 1.5 V 1.5 V 1.35 V 1.5 V 1.35 V 1.5 V Max. Qty supported* 16 16 24 24 24 24 24 24 Max. DIMM capacity 4 GB 4 GB 32 GB 16 GB 32 GB 32 GB 32 GB 32 GB Max.

Memory capacity 64 GB 64 GB 768 GB 384 GB 768 GB 768 GB 768 GB 768 GB Max. Memory at rated speed 32 GB 64 GB 768 GB 384 GB 512 GB 768 GB 256 GB 512 GB Maximum operating speed 1 DIMM per channel 1333 MHz 1333 MHz 1066 MHz 1333 MHz 1333 MHz 1333 MHz 1333 MHz 1333 MHz 2 DIMMs per channel 1066 MHz 1333 MHz 1066 MHz 1333 MHz 1333 MHz 1333 MHz 1066 MHz 1333 MHz 3 DIMMs per channel No support No support 1066 MHz 1333 MHz 1066 MHz 1333 MHz 1066 MHz 1066 MHz * Maximum quantity supported is shown for two processors installed. When one processor is installed, the maximum quantity supported is a half of the quantity that is shown. Internal storage The System x3650 M4 server supports 1.8-inch solid-state drives (SSDs), 2.5-inch SSDs and HDDs, and 3.5-inch HDDs. The server supports the following configurations: • 16x 2.5-inch hot-swap drive bays, either with or without a SAS expander • 8x 2.5-inch hot-swap drive bays • 6x 3.5-inch hot-swap hard drive bays • 8x 2.5-inch hot-swap drive bays + 16x 1.8-inch SSD drive bays • 8x 2.5-inch simple swap drive bays (only available in CTO) • 32x 1.8-inch SSD drive bays (only available in CTO) • 6x 3.5-inch simple-swap SATA hard drive bays (only available in CTO) The following figure shows the first three of these configurations.

Internal drive configurations (3 of 6 configurations shown) Backplanes and enablement kits All standard models, except models C4x and C5x, ship with eight 2.5-inch Slim-SFF SAS/SATA hot-swap hard drive bays. Models C4x and C5x ship with six 3.5-inch SAS/SATA hot-swap hard drive bays. The following table shows the internal storage expansion options that are available for x3650 M4 server.

Internal storage expansion options Part number Feature code Name and description Maximum supported 6 Gb SAS/SATA 69Y5319 A1JY x3650 M4 Plus 8x 2.5' HS HDD Assembly Kit with Expander • For models with eight 2.5-inch hot-swap bays, adds eight more bays for a total of 16 2.5-inch hot-swap HDD bays. • This option includes a SAS expander card that is mounted on an HDD backplane, and it does not consume a PCIe slot.

• Includes internal cables. 1 00D9490 A39W x3650 M4 Plus 8 2.5' HS HDD Assembly Option Kit • For models with eight 2.5-inch hot-swap bays, adds eight more bays for a total of 16 2.5-inch hot-swap HDD bays. • Does not include a SAS expander.

• Requires a second RAID adapter for the second set of eight drives. • Includes internal cables. 1 00D9493 A39Z x3650 M4 8 2.5' Plus 16 1.8' SSD Assembly Option Kit • For models with eight 2.5-inch hot-swap bays, adds 16 1.8-inch SSD bays for a total of 24 bays. • Requires two SSD controllers for the 16 SSDs.

• Includes internal cables. 1 None* A39X x3650 M4 Hot-Swap 16/32 HDD Assembly Kit • For CTO only. First set of 16 1.8-inch SSD bays. 1 00D9492 A39Y x3650 M4 16 Plus 16 1.8' SSD Assembly Option Kit • For CTO only. Second set of 16 1.8-inch SSD bays.

• Use with feature A39X to configure a total of 32 1.8-inch SSD bays. 1 None* A3A0 x3650 M4 2.5' Simple Swap Kit • For CTO only • Supports eight simple-swap drives • No support for 16 simple-swap drives 1 69Y5320 A1L6 x3650 M4 Tape Enablement Kit • Adds support for an internal RDX drive • This option includes one USB cable • The RDX drive is ordered separately 1 12 Gb SAS/SATA None* A460 x3650M4 8x 2.5' HS HDD Assembly Kit for 12Gb RAID • For CTO only. First set of eight 2.5-inch hot-swap bays for 12 Gb drive connectivity. • Requires either one M5210 or one N2215. 1 00Y7627 A461 x3650M4 16x 2.5' HS HDD Assembly Kit with Expander for 12Gb RAID • For models with 8x 12 Gb 2.5-inch hot-swap bays, adds 8 more 12 Gb bays for a total of 16x 2.5-inch hot-swap drive bays. • For models with 8x or 16x 6 Gb 2.5-inch hot-swap bays, adds 12 Gb support for the existing drive bays (requires one 12 Gb drive controller).

• Includes two backplanes (one of these comes with a SAS expander card that is mounted on it). • Includes two SAS HD internal cables. • Includes power and signal internal cables. • Requires either one M5210 or one N2215.

1 00Y7626 A462 x3650M4 16x 2.5' HS HDD Assembly Kit for 12Gb RAID • For models with 8x 6 Gb 2.5-inch hot-swap bays, adds 12 Gb support for the existing drive bays (requires one 12 Gb controller) or adds 8 more 12 Gb bays for a total of 16x 2.5-inch hot-swap drive bays (requires one 12 Gb drive controller; 8x 6 Gb drive bays are connected to the integrated M5110e, and 8x 12 Gb drive bays are connected to the 12 Gb drive controller). • Does not include a SAS expander. (Eight 6 Gb bays are connected to the integrated M5110e.) • Includes SAS, power and signal internal cables. • Requires either one M5210 or one N2215. (Eight 12 Gb bays are connected to the M5210 or N2215.) 1 * These configurations are only available via CTO and special bid.

Use the following table to determine what backplane kits you need. UltraSlim Enhanced SATA DVD-ROM (part number 46M0901) supports the following media and speeds for reading: • CD-ROM 24X • CD-DA (DAE) 20X • CD-R 24X • CD-RW 24X • DVD-ROM (single layer) 8X • DVD-ROM (dual layer) 8X • DVD-R (4.7 GB) 6X • DVD-R DL 4X • DVD+R 6X • DVD+R DL 4X • DVD-RW (4.7 GB) 4X • DVD+RW 4X • DVD-RAM (4.7/9.4 GB) 4X UltraSlim Enhanced SATA Multi-Burner (46M0902) supports the same media and speeds for reading as DVD-ROM (46M0901).

This drive also supports the following media and speeds for writing: • CD-R 24X • CD-RW 4X • High Speed CD-RW 10X • Ultra Speed CD-RW 16X • Ultra Speed Plus CD-RW 16X • DVD-R 8X • DVD-R DL 6X • DVD+R 8X • DVD+R DL 6X • DVD-RW 6X • DVD+RW 8X • DVD-RAM 5X. PCI riser card options Part number Feature code Description Maximum supported 69Y5321 A1JT / A1JU* x3650 M4 PCIe Riser Card (3 x8 PCIe slots) (one included in standard models in Riser socket 1) 2 69Y5322 A1JP / A1JQ* x3650 M4 PCIe Riser Card (1 x16 + 1 x8 PCIe slots) 2 81Y6843 A1JR / A1JS* x3650 M4 PCIX Riser Card (2 PCIX + 1 x16 PCIe slots) 2 90Y5085 A3L2 / A3A1* x3650 M4 PCIe Riser Card 2 (1 x16 for GPU + 1 x8 FH/HL Slots) 2 * For CTO orders, the first feature code is for the first riser slot and the second feature code is for the second riser slot. GPU adapters The server supports GPUs provided the appropriate riser card is installed (one or two riser cards depending on the number of GPUs). For the NVIDIA Quadro K600, riser card 69Y5322 is used. For all other GPUs, riser card 90Y5085 is used. The server provides up to 225W of external power to each GPU. The following table lists the supported GPUs.

GPU adapters Part number Feature code Description Maximum supported None* A3WH NVIDIA Quadro K600 4 None* A3WJ NVIDIA Quadro K2000 2 None* A3YU NVIDIA Quadro K4000 2 None* A3YW NVIDIA Quadro K5000 2 None* A3YV NVIDIA Quadro K6000 2 None* A470 NVIDIA Grid K2 (Actively Cooled) 2 * Available only via CTO or special bid. The following configuration rules apply when selecting GPU adapters: • General requirements for all GPUs • Use the configurator tools to ensure the necessary cables, riser cards, air baffles, and other prerequisites are selected • When 2 GPUs are selected (2, 3 or 4 GPUs in the case of the Quadro K600), the second processor is required and will require a special heatsink • GPUs cannot be mixed • Further restrictions apply depending on the power supplies installed as described in the Power supplies section. • NVIDIA Quadro K600 requirements: • Maximum 128 GB system memory • NVIDIA Quadro K2000 requirements: • No additional requirement • NVIDIA Quadro K4000, K5000, K6000 requirements: • Only drive backplanes 8x 2.5' HS HDD Kit (feature A1JX) or Plus 8x 2.5' HS HDD Assembly Kit with Expander (feature A1JY) can be selected • NVIDIA Grid K2 requirements: • Second processor required • When 2 GPUs selected, only drive backplanes 8x 2.5' HS HDD Kit (feature A1JX) or Plus 8x 2.5' HS HDD Assembly Kit with Expander (feature A1JY) can be selected. Power supplies Part number Feature code Description Maximum supported Standard models where used 94Y6668 A1H6 System x 550W High Efficiency Platinum AC Power Supply 2 A2x, B2x, C2x, C4x, 52x 94Y6669 A1H5 System x 750W High Efficiency Platinum AC Power Supply 2 D2x, F2x, G2x, H2x, J2x, 62x, GSx 94Y7631 A39N System x 750W High Efficiency -48 V DC Power Supply 2 - 94Y6667 A2EB System x 900W High Efficiency Platinum AC Power Supply 2 L2x, 32x, M2x An AC power supply ships standard with one 2.8 m C13 - C14 power cord. General power supply rules are as follows: • Minimum of 1 and maximum of 2 power supplies per system • If 2 installed, power supplies must be identical. 550W power supply restrictions • GPUs not supported • 135W processors not supported; 130W processors supported with restrictions as listed below.

Systems management The server contains Integrated Management Module II (IMM2), which provides advanced service-processor control, monitoring, and an alerting function. If an environmental condition exceeds a threshold or if a system component fails, the IMM2 lights LEDs to help you diagnose the problem, records the error in the event log, and alerts you to the problem. Optionally, the IMM2 also provides a virtual presence capability for remote server management capabilities. The IMM provides remote server management through industry-standard interfaces: • Intelligent Platform Management Interface (IPMI) Version 2.0 • Simple Network Management Protocol (SNMP) Version 3 • Common Information Model (CIM) • Web browser The optional Integrated Management Module Advanced Upgrade is required to enable the remote presence and blue-screen capture features.

Physical and electrical specifications Dimensions and weight: • Height: 86.5 mm (3.4 in) • Width: 445 mm (17.5 in) • Depth: 746 mm (29.4 in) • Weight: • Minimum configuration: 25 kg (55 lb) • Maximum configuration: 30 kg (65 lb) Supported environment: • Air temperature: • Server on: 5 °C to 40 °C (41 °F to 104 °F); altitude: 0 to 950 m (3,117 ft); decrease the maximum system temperature by 1 °C for every 175-m increase in altitude. • Server off: 5 °C to 45 °C (41 °F to 113 °F) • Maximum altitude: 3,050 m (10,000 ft), 5 °C to 28 °C (41 °F to 82 °F) • Shipment: -40 °C to +60 °C (-40 °F to 140 °F) • Humidity: • Server on: 8% to 85%, maximum dew point 24 °C, maximum rate of change 5 °C/hr • Server off: 8% to 85%, maximum dew point 27 °C • Design to ASHRAE Class A3, ambient of 36 °C to 40 °C (96.8 °F to 104 °F), with relaxed support: • Supports cloud like workload with no performance degradation acceptable (Turbo-Off). • Under no circumstance can any combination of worst case workload and configuration result in system shutdown or design exposure at 40 °C.

• The worst-case workload (like Linpack, Turbo-On) might have performance degradation. Warranty options The System x3650 M4 has a three-year warranty with 24x7 standard call center support and 9x5 Next Business Day onsite coverage. Also available are Lenovo Services warranty maintenance upgrades and post-warranty maintenance agreements, with a well-defined scope of services, including service hours, response time, term of service, and service agreement terms and conditions. Lenovo warranty service upgrade offerings are country-specific. Not all warranty service upgrades are available in every country. For more information about Lenovo warranty service upgrade offerings that are available in your country, visit the Lenovo Services website. Warranty service definitions Term Description On-site service A service technician will arrive at the client’s location for equipment service.

24x7x2 hour A service technician is scheduled to arrive at the client’s location within two hours after remote problem determination is completed. Lenovo provides service around the clock, every day, including Lenovo holidays. 24x7x4 hour A service technician is scheduled to arrive at the client’s location within four hours after remote problem determination is completed. Lenovo provides service around the clock, every day, including Lenovo holidays. 9x5x4 hour A service technician is scheduled to arrive at the client’s location within four business hours after remote problem determination is completed. Lenovo provides service 8:00 am - 5:00 pm in the client's local time zone, Monday-Friday, excluding Lenovo holidays.

For example, if a customer reports an incident at 3:00 pm on Friday, the technician will arrive by 10:00 am the following Monday. 9x5 next business day A service technician is scheduled to arrive at the client’s location on the business day after remote problem determination is completed. Lenovo provides service 8:00 am - 5:00 pm in the client's local time zone, Monday - Friday, excluding Lenovo holidays. Calls received after 4:00 pm local time require an extra business day for service dispatch. Next business day service is not guaranteed. Committed Repair Problems receive priority handling so that repairs are completed within the committed time of 6, 8, or 24 hours.

Lenovo provides service 24 hours/day, every day, including Lenovo holidays. The following Lenovo warranty service upgrades are available: • Warranty and maintenance service upgrades: • Three, four, or five years of 9x5 or 24x7 service coverage • Onsite response from next business day to 2 or 4 hours • Committed repair service • Warranty extension of up to 5 years • Post warranty extensions • Committed Repair Service Committed Repair Services enhances the level of Warranty Service Upgrade or Post Warranty/Maintenance Service offering associated with the selected systems. Offerings vary and are available in select countries.

Microcode Support Keeping microcode current helps prevent hardware failures and security exposure. There are two levels of service: analysis of the installed base and analysis and update where required. Offerings vary by country and can be bundled with other warranty upgrades and extensions. • Remote Technical Support Services (RTS) RTS provides comprehensive technical call center support for covered servers, storage, operating systems, and applications. Providing a single source for support of hardware and software issues, RTS can reduce problem resolution time, decreasing the cost to address technical problems and increasing uptime.

Offerings are available for Windows, Linux, IBM Systems Director, VMware, Microsoft business applications, and Lenovo System x storage devices, and IBM OEM storage devices. Regulatory compliance The server conforms to the following regulations: • Energy Star 2.0 • FCC - Verified to comply with Part 15 of the FCC Rules, Class A • Canada ICES-003, issue 4, Class A • UL/IEC 60950-1 • CSA C22.2 No. Drive options for EXP2524 external expansion enclosures Part number Description Maximum quantity supported per one enclosure 2.5' NL SAS HS HDDs 00NC571 1TB 7,200 rpm 6Gb SAS NL 2.5' HDD 24 2.5' SAS HS HDDs 00NC561 146GB 15,000 rpm 6Gb SAS 2.5' HDD 24 00NC563 300GB 15,000 rpm 6Gb SAS 2.5' HDD 24 00NC565 600GB 10,000 rpm 6Gb SAS 2.5' HDD 24 00NC567 900GB 10,000 rpm 6Gb SAS 2.5' HDD 24 00NC569 1.2TB 10,000 rpm 6Gb SAS 2.5' HDD 24 2.5' SAS HS SSDs 00NC573 200GB 6Gb SAS 2.5' SSD 24 00NC575 400GB 6Gb SAS 2.5' SSD 24.

Rack cabinets Part number Description 201886X 11U Rack Office Enablement Kit 93072RX 25U S2 Standard Rack 93072PX 25U Static S2 Standard Rack 93074RX 42U S2 Standard Rack 93634PX 42U 1100mm Enterprise V2 Dynamic Rack 93634EX 42U 1100mm Enterprise V2 Dynamic Expansion Rack 93604PX 42U 1200mm Deep Dynamic Rack 93614PX 42U 1200mm Deep Static Rack 93084PX 42U Enterprise Rack 93084EX 42U Enterprise Expansion Rack For more information, see the list of Product Guides in the Rack cabinets and options category. Lenovo Financial Services Lenovo Financial Services reinforces Lenovo’s commitment to deliver pioneering products and services that are recognized for their quality, excellence, and trustworthiness. Lenovo Financial Services offers financing solutions and services that complement your technology solution anywhere in the world. We are dedicated to delivering a positive finance experience for customers like you who want to maximize your purchase power by obtaining the technology you need today, protect against technology obsolescence, and preserve your capital for other uses. We work with businesses, non-profit organizations, governments and educational institutions to finance their entire technology solution.

We focus on making it easy to do business with us. Our highly experienced team of finance professionals operates in a work culture that emphasizes the importance of providing outstanding customer service.

Our systems, processes and flexible policies support our goal of providing customers with a positive experience. We finance your entire solution. Unlike others, we allow you to bundle everything you need from hardware and software to service contracts, installation costs, training fees, and sales tax. If you decide weeks or months later to add to your solution, we can consolidate everything into a single invoice. Our Premier Client services provide large accounts with special handling services to ensure these complex transactions are serviced properly. As a premier client, you have a dedicated finance specialist who manages your account through its life, from first invoice through asset return or purchase. This specialist develops an in-depth understanding of your invoice and payment requirements.

For you, this dedication provides a high-quality, easy, and positive financing experience. For your region specific offers please ask your Lenovo sales representative or your technology provider about the use of Lenovo Financial Services. For more information, see the following Lenovo website.

• 4806 Answers SOURCE: Hi, First of all which operating system is on the machine? Secondly have you been into the BIOS to see if the on-board has been disabled. To get into the BIOS restart the computer and press either the Del or Esc key to access the BIOS. Also go to device manager and see if the audio has been disabled from there. If you have installed Windows 7 or Vista then there could be a chance that the motherboard drivers are not designed for the operating system.

If that's the case then no driver will work. You would have to manually search the internet for someone who may have found a compatible driver.

Posted on Jul 22, 2010. Determine the manufacturer and model number of the system board. Locate the system board manufacturer's website. Check for a list of supported processors for your system board. If it is on the list, you may need only to update the system board firmware. If you have questions about the suitability of the processor / system board combination - contact the system board manufacturer's tech support group or technical forums that they may be operating on the site. Do not attempt to apply a firmware update file to any system board for which it is not intended!

Doing so can cause irreparable harm to the system board. Sep 04, 2012 . Hello, *********** board will suport for 133 bus speed memory.Memory Size is not the matter,what ever you can install in the mother board,may be 128/256/512,but ensure the bus speed.It wont be more than 133 mhz.,then your mobo can not support.If you have SDR 133 bus speed ram you can install.

*********** board speed is 400 mhz,you can change 478 pin any intel processor,for better performence but the bus speed would be 400 mhz or bellow 400mhz,both will be suported. For detail follow bellow the link. Hope it will you. Jan 08, 2011 .
